【FEATURES】
1, Independent probe, excellent anti-interference performance.
2. Touch screen operation, human-machine interface.
3. Normal/abnormal and total number can be display.
4. With printer can send out the data of report.
5. High precision detection object positioning technology show on the LCD display.
6. Sensitivity setting and real-time signal display
7. Conveyor belt stop can be set if any needle detected.
8. Auto restart function set.
9. Anti-electrostatic conveyor belt.
10. The power supply voltage can be customized to meet the various countries
【SPECIFICATIONS】

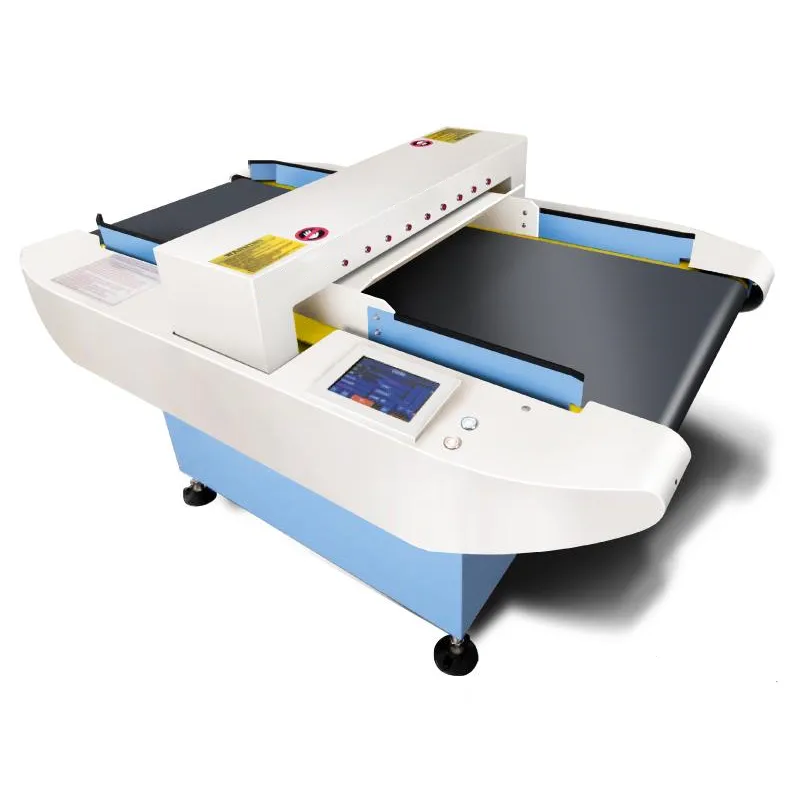

▲ Model： ND-630D(100)
▲ Detection method： Magnetic induction
▲ Sensitivity： Iron ball ¢0.8mm
▲ Detection level： 1-99
▲ Detection width： 600mm
▲ Alarm method： buzzer、light
▲ Conveyor belt speed： 32m/min(50HZ)
▲ Power： AC200-240V 50-60HZ
▲ Rate power： 140W
▲ Dimension： 1750mm(L)*1150mm(W)*900mm(H)
▲ Weight： 260Kg
【MODEL】
Detect height | Sensitivity | Remark |
100mm | Iron ball ¢0.8mm | Standard type |
120mm | Iron ball ¢1.0mm | Option at factory |
150mm | Iron ball ¢1.2mm | Option at factory |
200mm | Iron ball ¢1.5mm | Option at factory |
▲ The specification is under standard test condition，machine environment ,shape of metal, etc will give effect to the result.
