1. RS232/RS485 Serial Communication
Application: Connect checkweighers to PCs, PLCs, orindustrial controllers for real-time data transfer.
Key Features:
RS232: Short-range (up to 50 ft), point-to-pointcommunication. Suitable for simple setups likeconnecting to a PC for data logging.
RS485: Long-range (up to 4,000 ft), supports multi-device networks. Ideal for industrial environments withmultiple checkweighers or other sensors.
Implementation:
Configure baud rate (typically 9600-115200), data bits(8), parity (none), and stop bits (1).Use Modbus RTU protocol for standardizedcommunication with PLCs or SCADA systems.
2. Ethernet/IP Connectivity
Application: Direct integration with factory networks, loTplatforms, or cloud services.
Key Features:
TCP/IP Protocol: Enables high-speed data transfer(10/100 Mbps) over LAN/WAN.o OPC UA Support: Secure, platform-independentcommunication for Industry 4.0 applications.
Implementation:
Assign static IP to checkweigher for stable networkaccess.
Use MQTT protocol for lightweight loT integrations (e.g.
AWS loT, Azure).
3. PC Integration
Application: Data logging, quality control, or processoptimization via software.
Key Features:
Windows/Linux Drivers: Ensure compatibility withcommon OS for easy setup.
SDK/API Access: Develop custom applications (e.g..
Python scripts for data analysis).
Implementation:
Use virtual COM ports (e.g., FTDI chips) for RS232/USBadapters.
Deploy middleware like Node-RED for visual data flowprogramming.
4. MES (Manufacturing Execution System)Integration
Application: Synchronize weight data with productionorders, OEE metrics, or SPC charts.Key Features:
Modbus TCP/IP: Standard protocol for MES-.
checkweigher communication.
Database Logging: Store weight data in SQL databases0(e.g., MySQL, PostgreSQL) for reporting.
Implementation:
Map checkweigher data fields (e.g., gross weight, tare)to MES variables.
Use REST APIs for cloud-based MES platforms (e.g.
Siemens MindSphere).
5. ERP (Enterprise Resource Planning)Integration
Application: Auto-update inventory levels, trigger reorderalerts, or validate shipments.
Key Features:
EDI Support: Electronic Data Interchange for B2Btransactions.
Barcode Scanning: Link weight data to product SKUs in0ERP (e.g., SAP, Oracle).
Implementation:
Use middleware like Mirth Connect for HL7/EDItransformations.
Develop custom plugins for ERP systems (e.g., SAP BAPIcalls).
6. Label Printer Output
Application: Print weight data, barcodes, or compliancelabels (e.g., GS1-128).
Key Features:
ZPL/EPL Support: Native languages for Zebra printers.o Dynamic Templates: Adjust label content based onweight thresholds (e.g., "Overweight" alerts).
Implementation:
Use printer SDKs (e.g., Zebra ZPL II) for directcommunication.
Integrate with label design software (e.g., Bartender,0NiceLabel).
7. IoT Platform Connectivity
Application: Remote monitoring, predictive maintenance, orAl-driven analytics.
Key Features:
Cloud Dashboards: Visualize weight trends in real-time(e.g., Grafana, Power BI).
Alerting: Trigger SMS/email notifications for out-of-spec weights.
Implementation:
Use AWS loT Core or Azure loT Hub for scalabledeployments.
Deploy edge computing (e.g. Raspberry Pi) for localdata preprocessing.

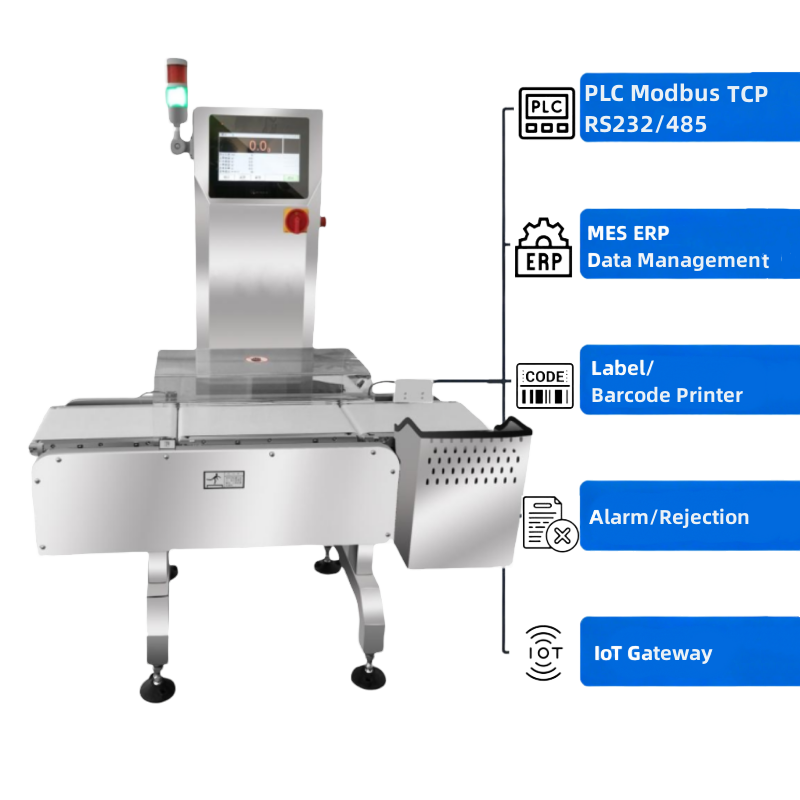

A checkweigher output refers to the system or method by which a checkweigher machine transmits weight measurement data, control signals, or status updates to external devices, software, or networks for further processing, monitoring, or decision-making.
