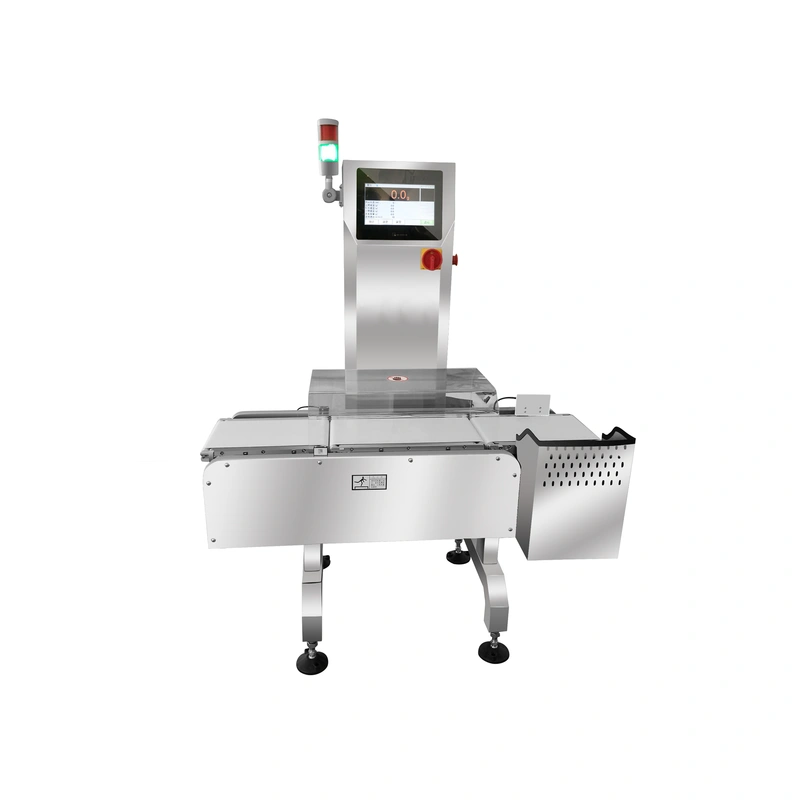

Automatic check weigher for snack food, packed bag, bottles, cups food. canned food,pouch

Durable checkweigher for common weight in bag, pouch, bottle, cup and can 3g- 1200g

checkweigher for common weight from 3g-1200g.

widely in packaging line, food, pharmaceutical, cosmetics industrial.

Description




CW-220check weigher.jpg

Catalog No.

                                CW-220

Weighing Range

3g-1200g

Line Speedm/min

5-85m

Max Speedpackages/min

180 packages/min

Accuracy

          ±0.3g

     Weighing Device

                          HBM   loadcell

Conveyor Width ( working width )

 220mm

Operation

LED Touch Panel

Alarm

buzzer/alarm light

Rejector

      Pusher Type or Flipper Type optional

Number of product memories

50

Power

1P 220 V 50 HZ

Rate

260W

Air Outlet Port

8mm

Weight

95kg

Height from the ground to the conveyor

750±50 mmCan be customized

Ø  Features and specifications.


u
Strong stainless steel structure; water proof design.

u  German HBM high-precision load cell. Based on the most advanced high-speed digital signal-

Processing technology, high-speed and stable detection.

u  Zero analysis and tracking technology.

u  Dynamic weight compensation technology.

u  Memory for 50 product preset. Humanized product editing and storing.

u  Rapid product switching function, adjust the corresponding product sorting speed.

u  Convenient USB detection data replication storage function. (optional).

u  LCD touch-screen operation with Multilanguage operation system.

u  Optional scanning system and automatic printing machine.



Parts

Item

Amount

Company

Monitor

1

Weinview

Motor

3

Oriental   Motor

Inverter

1

Mitsubishi

Programmable   Logic Controllers (PLC)

1

Mitsubishi

Belt

3

Habasit

Pneumatic   Components

1

Taiwan   Yadeke

Load   Cell

1

HBM

Photoelectric   Sensors

1

OMRON

Air   Switch

1

Mitsubishi

Relay

1

OMRON
