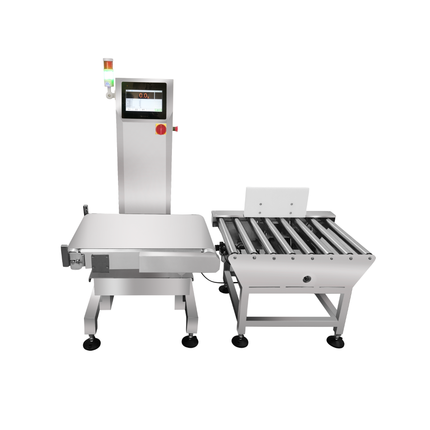

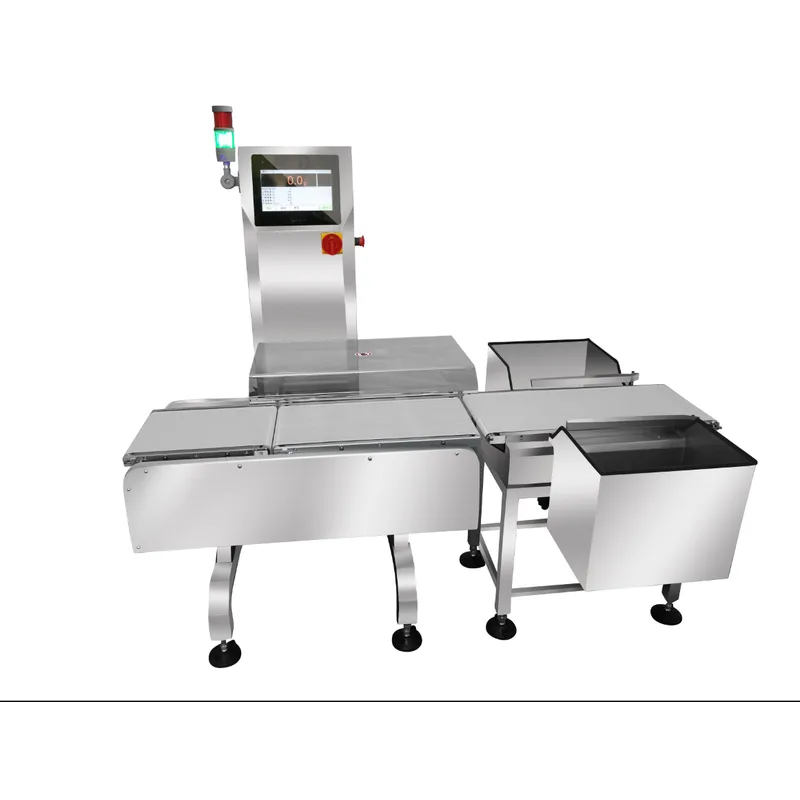

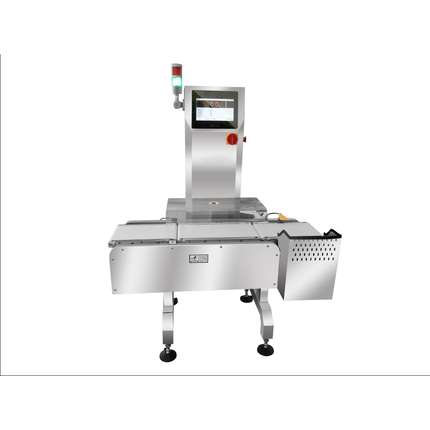

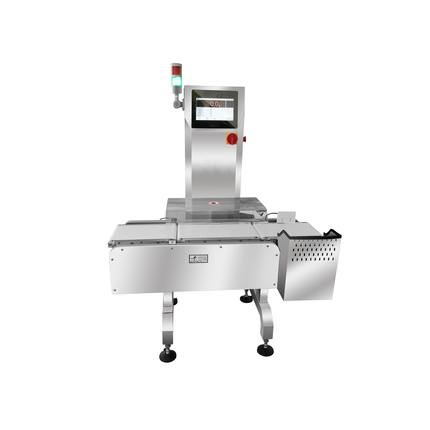

checkweigher for package weight from 5g-3000g

check weigher in motion for food industry weight range 5g-3000g

weight from 5g-3000g checkweigher in bag, pouch, bottles etc.


Description


Catalog No.

                                CW-300

Weighing Range

5g-3000g

Line Speedm/min

5-85m

Max Speed

                       150 packages/min

Accuracy

                        ±0.5g

     Weighing Device

                        HBM Load Cell

Conveyor Width ( working width )

 300mm

Operation

  LED Touch Panel

Rejector

     Pusher Type or Flipper Type optional

Number of product memories

50

Power

1P 220 V 50 HZ

Rate

280W

Air Outlet Port

8mm

Weight

110kg

Height from the ground to the conveyor

750±50mm(Can be customized)



Ø  Features and specifications.

u  Strong stainless steel structure; water proof design.

u  German HBM high-precision load cell. Based on the most advanced high-speed digital signal-

Processing technology, high-speed and stable detection.

u  Zero analysis and tracking technology.

u  Dynamic weight compensation technology.

u  Memory for 50 product preset. Humanized product editing and storing.

u  Rapid product switching function, adjust the corresponding product sorting speed.

u  Convenient USB detection data replication storage function. (optional).

u  LCD touch-screen operation with Multilanguage operation system.

u  Optional scanning system and automatic printing machine.



Parts

Item

Amount

Company

Monitor

1

Weinview

Motor

3

Oriental   Motor

Inverter

1

Mitsubishi

Programmable   Logic Controllers (PLC)

1

Mitsubishi

Belt

3

Habasit

Pneumatic   Components

1

Taiwan   Yadeke

Load   Cell

1

HBM

Photoelectric   Sensors

1

OMRON

Air   Switch

1

Mitsubishi

Relay

1

OMRON
