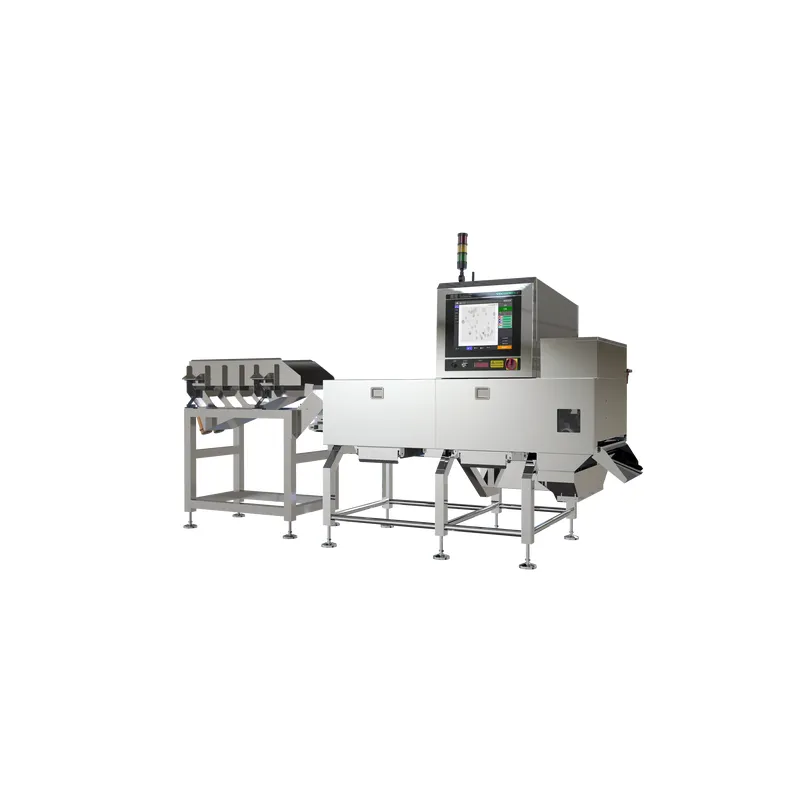

X-ray Inspection Systems for bulk flow

X-ray inspection systems are specifically designed to detect unwanted physical contaminants within food and pharmaceutical products, regardless of their shape or location. Xray machines placed early in the production line ensure contaminants can be removed at the source before further value is added, reducing food waste and saving costs.

Description


Model

B6010

Max inspection size

600mm*100mm(W*H)

Machine height (conveyor)

800±50mm

Inspection ability

SUS ball:0.3mm, SUS wire:0.2mm*2mm, Glass ball: 1.0mm

X-ray generator

VJ X-ray tube 210W

Receptor

Hamamatsu/DT

X-ray beams

Single vertical beam

X-ray emissions

<   1uSv/hr.

OS

Linux   (Core4.10) stability and reliability for anti-virus. Auto data save.

Ease of use

High performance x-ray software   can reduce the need for manual adjustments and the potential for human   programming errors

Algorithm platform

XDET AI   humanized easy use

Product setup

Easy   adjustment process for learning new products and minutes. Inspection   parameters can be adjusted in the course

HMI

17’ Full-color TFT Screen with touch.

Real-time and frozen images. Save the last rejects into the   buffer. The rejected images can be kept for up to 90 days.

Storage

Hard drive 8GB flash for statistics and images storage.

Construction

Stainless steel 304 quick   disassembly conveying structure, and belt conveyor approved by FDA.

Communication module

LAN port, USB, 4G wireless.  Auto image, Error logs, inspection   analysis, online technical support,

Support

Software team viewer

Weight

340kg

Air compress

Compressed air: 80 to 100 psi (5.5 bar to 6.9 bar) for optional   pneumatic rejectors

Alarm

Buzzer, long life 3 color LED light tower.

License

Approval FDA, MA, CE certificate.

Applications

Horizontal conveyor model for the   detection of contaminants in packaged products.

Power supply

AC 220V 50-60Hz 1 Phase 10A max.

Motor

Oriental, belt speed: 5-60m/min

Operating temperature

0-40 degrees Celsius 30-85%   humidity.
