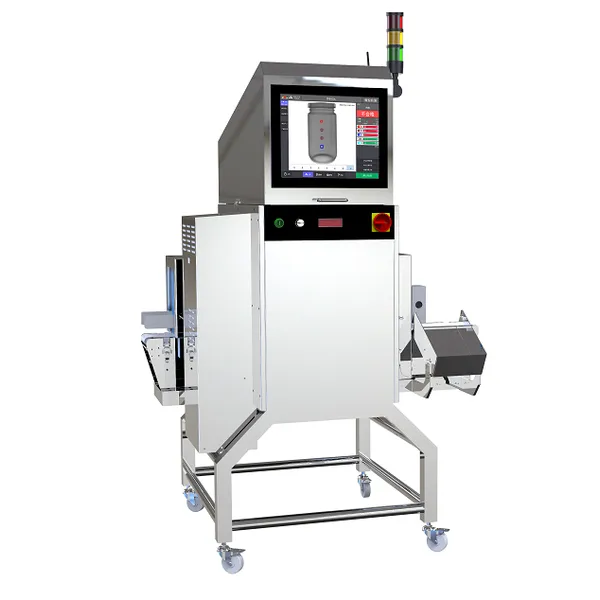

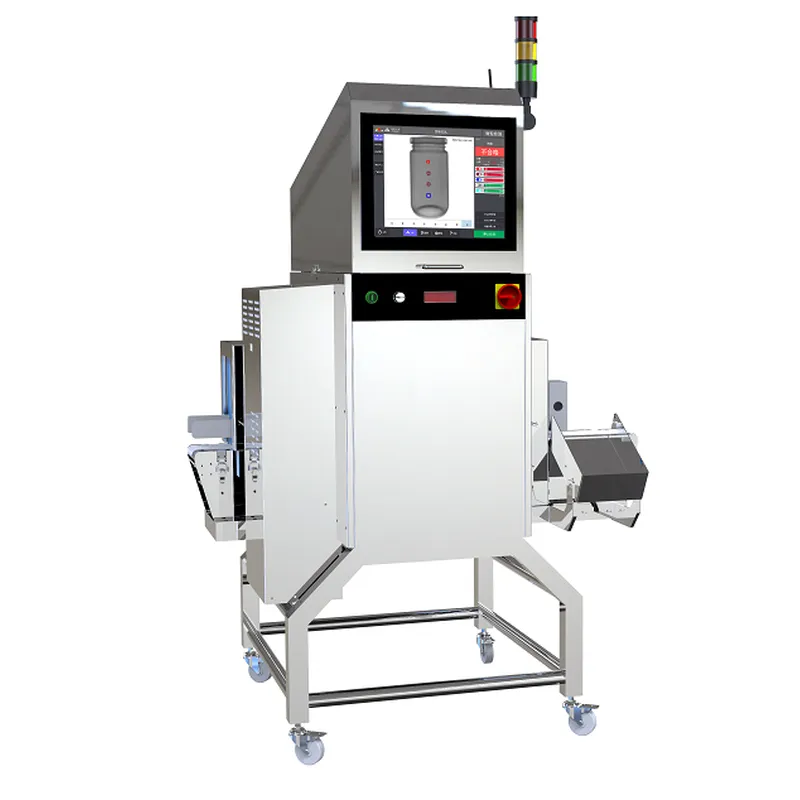

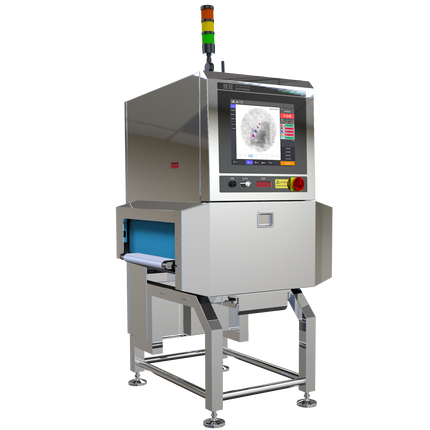

X-ray Inspection Systems for bottles

Food x-ray, also known as food inspection x-ray, is a process used to inspect food products using x-ray technology. This technology allows for the detection of foreign objects, such as metal, glass, or plastic, that may be present in food products.

The process works by passing the food product through an x-ray machine, which generates images of the product's interior. These images are analyzed by trained operators or computer algorithms to identify any foreign objects that may be present.

Food x-ray inspection is used in a variety of food production and processing industries, including meat and poultry, baked goods, snack foods, and packaged goods. It can help manufacturers ensure the safety and quality of their products by detecting and removing any foreign objects that may have accidentally entered the product during production or packaging.

In addition to foreign object detection, food x-ray can also be used to inspect for other quality control issues, such as missing or misshapen products, and to ensure that products meet specific weight and size requirements.

Description


Model

D1623

Max inspection size

160mm*230mm(W*H)

Machine height (conveyor)

800±50mm

Inspection ability

SUS ball:0.3mm, SUS wire:0.2mm*2mm, Glass ball: 1.0mm

X-ray generator

VJ X-ray tube 350W

Receptor

Hamamatsu/DT

X-ray beams

Single vertical beam

X-ray emissions

<   1uSv/hr.

OS

Linux   (Core4.10) stability and reliability for anti-virus. Auto data save.

Ease of use

High performance x-ray software   can reduce the need for manual adjustments and the potential for human   programming errors

Algorithm platform

XDET AI   humanized easy use

Product setup

Easy   adjustment process for learning new products and minutes. Inspection   parameters can be adjusted in the course

HMI

17’ Full-color TFT Screen with touch.

Real-time and frozen images. Save the last rejects into the   buffer. The rejected images can be kept for up to 90 days.

Storage

Hard drive 8GB flash for statistics and images storage.

Construction

Stainless steel 304 quick   disassembly conveying structure, and belt conveyor approved by FDA.

Communication module

LAN port, USB, 4G wireless.  Auto image, Error logs, inspection   analysis, online technical support,

Support

Software team viewer

Weight

340kg

Air compress

Compressed air: 80 to 100 psi (5.5 bar to 6.9 bar) for optional   pneumatic rejectors

Alarm

Buzzer, long life 3 color LED light tower.

License

Approval FDA, MA, CE certificate.

Applications

Horizontal conveyor model for the   detection of contaminants in packaged products.

Power supply

AC 220V 50-60Hz 1 Phase 10A max.

Motor

Oriental, belt speed: 5-60m/min

Operating temperature

0-40 degrees Celsius 30-85%   humidity.
