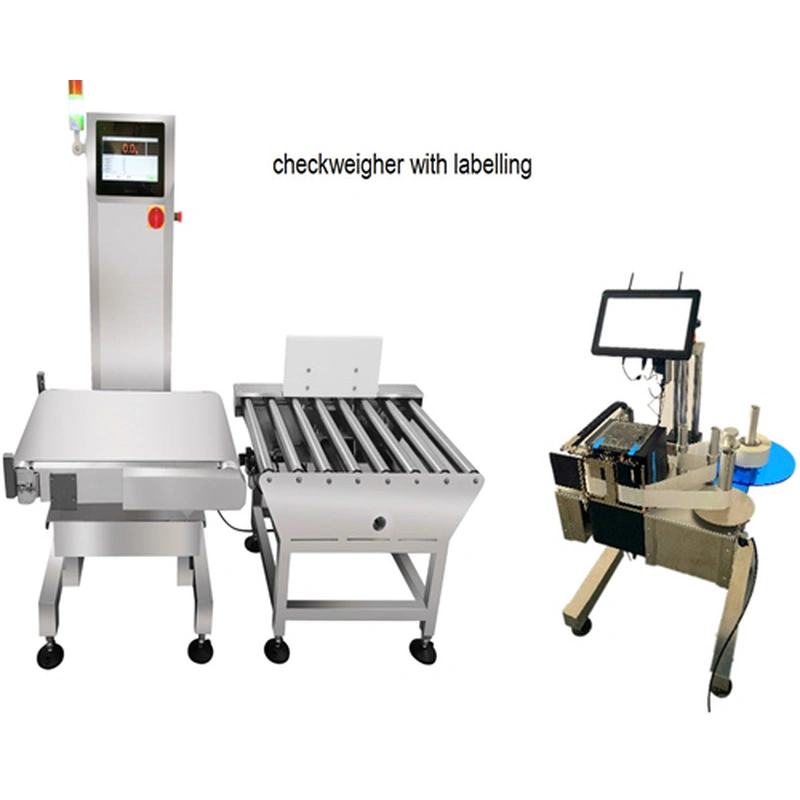

Weighing and labeling system

Weighing and labeling systems are essential for accurately and efficiently weighing and labeling products in various industries. These systems offer flexibility, speed, and reliability while saving manpower and packaging costs. With advancements in technology, weighing and labeling systems have become user-friendly and offer a range of automated, semi-automated, and manual options.

Check weigher CW-500

Weighing range: 10g-50kg.

Belt speed: 10-50m/min

Max speed: 50pc/min. (Depends on product length etc.)

Accuracy: 10g. (Depends on weight and length etc.)

Package Total: Two standard fumigation-free wooden cases

Printer ZE500-4(ZE-6 optional)

Methods: thermal-transfer or direct-thermal

16MB SDRAM, 64MB flash memory

Max print width: 104mm/168mm

Resolution: 8 dot/mm(203dpi) or 12 dots/mm(300dpi)

Max print speed: 305mm/s/

Main function	Dynamic weighing, pricing and labeling
Display	13.3’ colorful touch screen display with window 10 system
Throughput	Max 30pcs/min
Configuration	Product flow: LR (optional RL), printer position: side
Scale capacity/Accuracy	50kg/10g
Product/Tray size	Length: 40-600mm/Width: 40-500mm/Height: min 50mm
Print method	Direct Thermal printing (8 dot)
Label size	Length: 30-130mm/Width: 30-120mm
Print speed and width	156mm/sec 104mm
Print resolution	203dpi/8 dots per mm
Label applicator and supply	pusher/0.5-0.6Mpa
Label roll core (outer) diameter	76mm (285mm)
Structure	Stainless steel 304, anodized aluminum
Power	220V-240V single phase 3 wire. 50Hz.
Operating Environment	0-40°C, Humidity 20-80% RH, Non-condensing
Communication	Parallet port, ERP, USB/RS485/Ethernet TCP/IP/ Parallel
Protection class	IP54
Total printer connection	Yes
Network capability	Yes
Print content	QR code/bar code/weight/price etc. English or Russian

Product highlights

· Compact and hygienic stainless steel design

· Quick-change system of label rolls

· Automatic adjustment of product guides

· Automatic label rotation

· Network connectivity (system-independent)

· Quick-change system of label rolls

· Online remote service

· Easy administration of master data

· Intuitive operation via colour-touch screen

Additional features and options

· Metal detector

· Products are checked for metal contamination.

· Reject unit

· Product not meet the weight requirements or are metal contaminated, can be reject design.

· Label designer

· Also supplied free of charge. Used for creating label layouts. See on your computer screen exactly what the labels will look like when printed.
